Overview

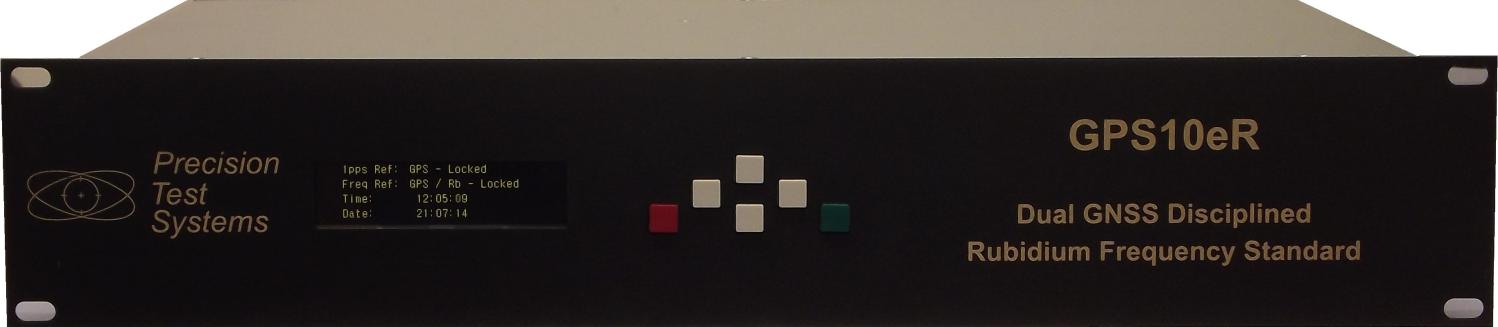

A stable 10 MHz reference that combines a rubidium oscillator with long-term GNSS disciplining. Dual receivers support GPS, Galileo, GLONASS and BeiDou. A front-panel LCD and browser interface provide local and remote monitoring, while free-run operation maintains the rubidium reference when satellite reception is lost.
Technical specifications
| Reference | GNSS-disciplined rubidium |
|---|---|
| Standard sinewave outputs | 5 × 10 MHz; 15 outputs with options |
| Timing outputs | 2 × 1 PPS as standard |
| GNSS systems | GPS, Galileo, GLONASS, BeiDou |
| GNSS receivers | Two, with automatic switchover |
| Interfaces | RS232, USB, Ethernet; embedded web interface |
| Connectors | BNC standard; other types optional |
| Enclosure | 1U and 2U rack versions; 2U accommodates more options |
| GNSS 1 PPS timing | < 20 ns typical, after accounting for cable delay |
| Rubidium 1 PPS jitter | < 300 ps |
Summary of the linked product brochure. Performance depends on the selected configuration; the full brochure includes measurement conditions and option details.
Options & configurations
- Extra isolated sinewave outputs
- Ultra-low phase noise (26 / 26C)
- Low Allan deviation option
- Redundant two-unit system
- IRIG-B, NTP / PTP options
- DDS sinewave / squarewave generator
- Alternative output frequencies
- Alternative connectors and DC supply
Not every option can be combined. PTS will confirm compatibility for your requested configuration.
